New mounting Micro Canal recessed LED fittings(24 feb 2017)
The mounting of the Micro Canal recessed LED fittings has been improved. The aluminium extremities are manufactured differently, enabling a stronger fastening in the mounting holes.
Each end can hold 2 mounting screws. With the new mounting method, the screws are sufficiently far removed from the mounting holes and can be firmly fixated into the underlying material (max. Ø 3.5mm with recessed screw head). This improvement applies to the Micro Canal, Micro Canal WT and Micro Canal 60 WT series.
|Upper view||Lower view (old)||Lower view (new)|

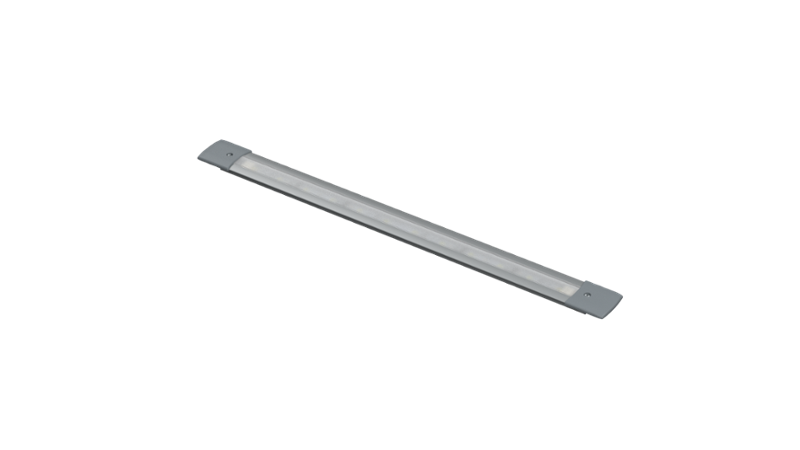

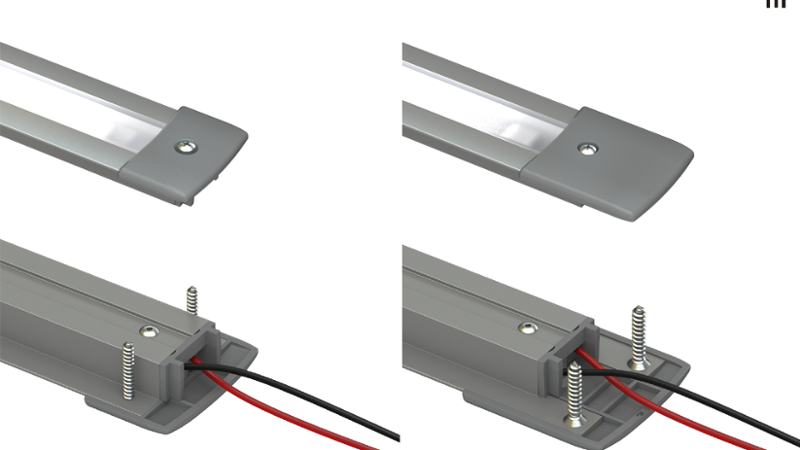

|Micro Canal||(click for enlargement in new window)|

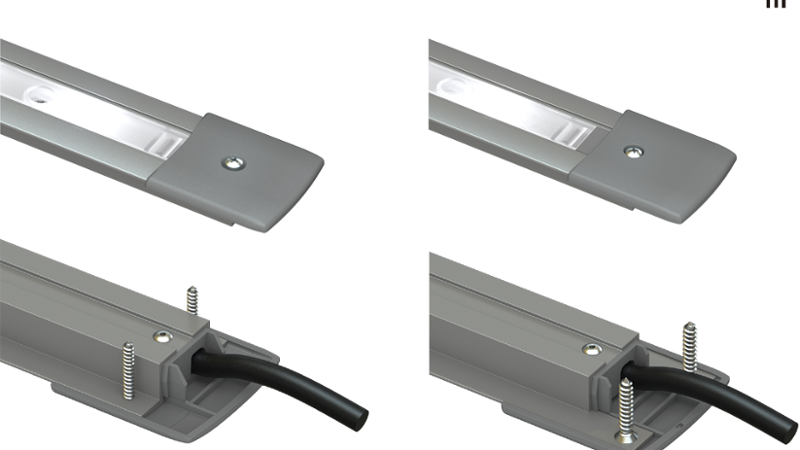

|Micro Canal WT||(click for enlargement in new window)|

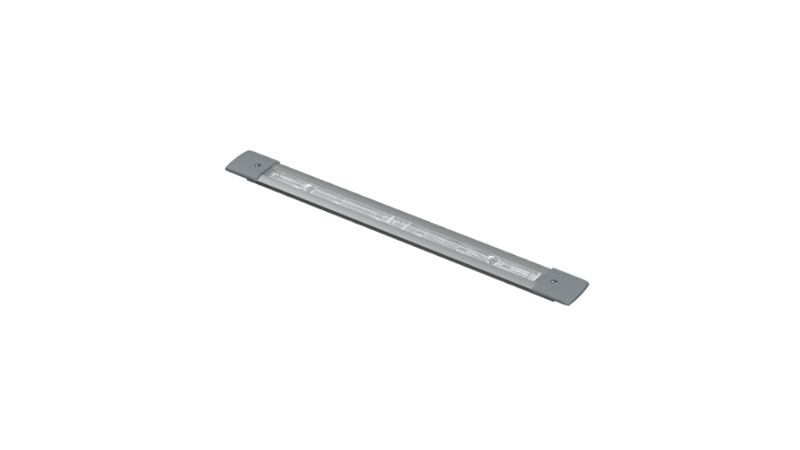

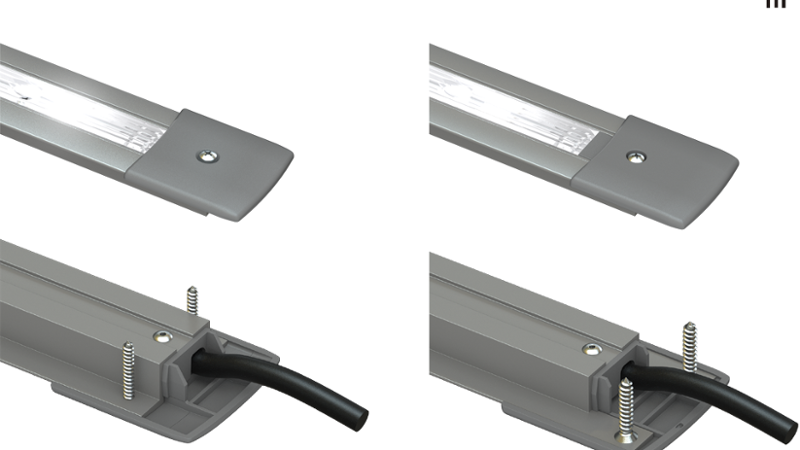

|Micro Canal 60 WT||(click for enlargement in new window)|
The new mounting method has no further effect on the recessed dimensions listed in our catalogue and on our website. Besides mounting screws, we also advise to use glue or sealant to mount the fitting into the mounting hole, in case the fitting length exceeds approximately 60cm.
